Reporting and Analytics

Launching Test Reports Page

1. Go to the TestRay home page.

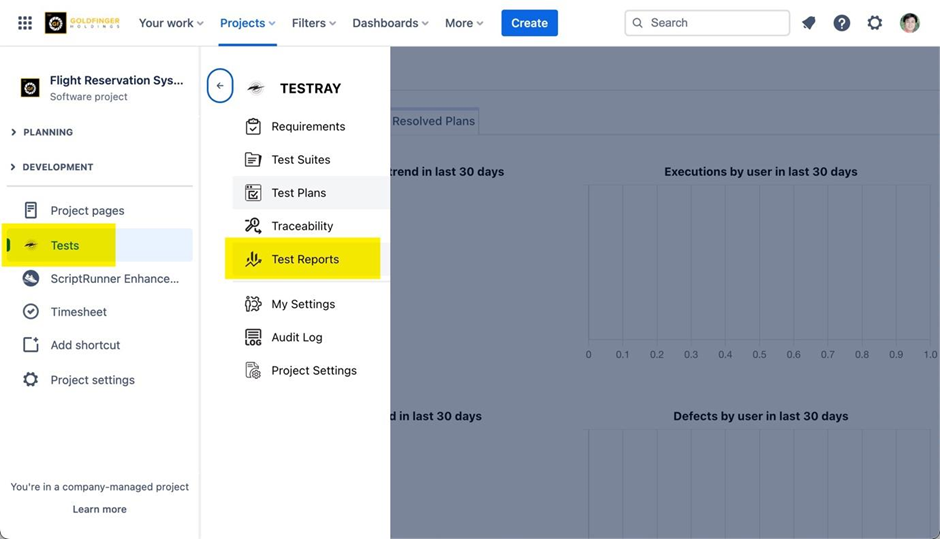

2. Navigate to Tests -> Test Reports.

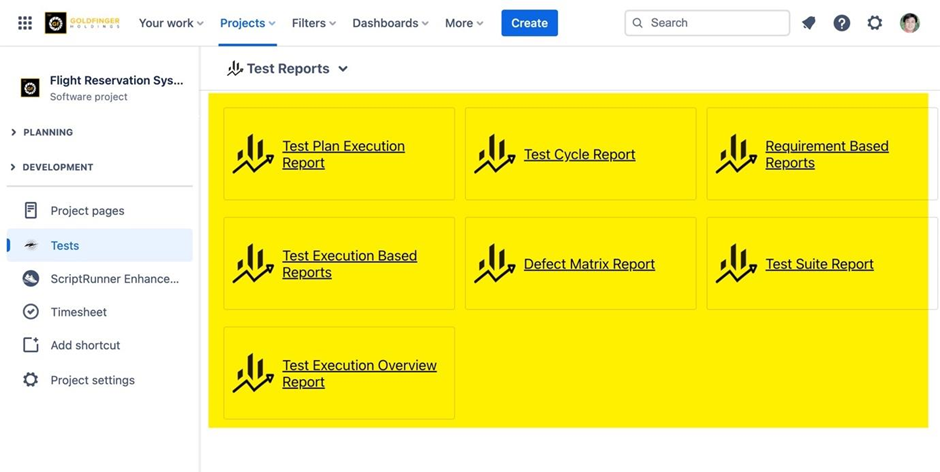

3. The Test Reports page appears with all TestRay pre-defined reports.

Note: You can click the “Report Type’’ link to generate specific reports.

Configuring Test Report

1. Click ‘’Test Plan Execution Report’’ link. The “Configure – Test Plan Execution Report” page appears.

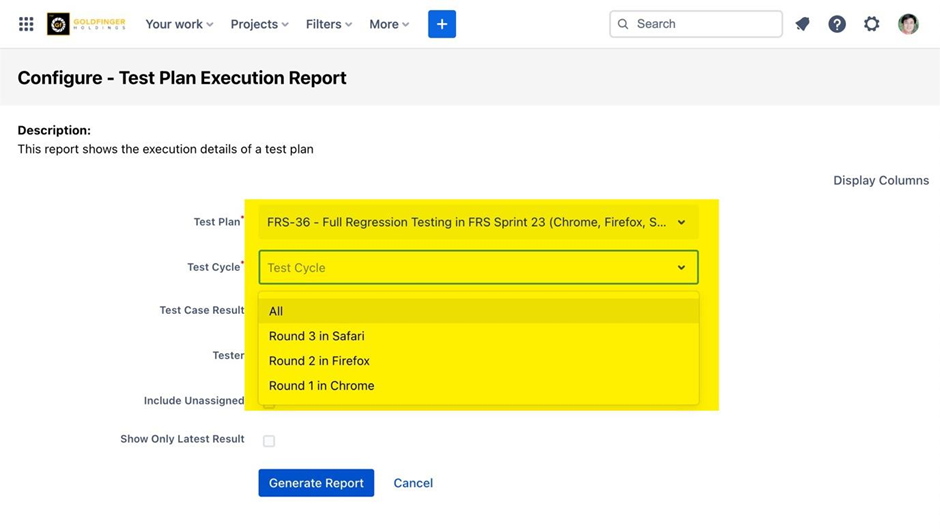

2. Choose a Test Plan and Test Cycle/s.

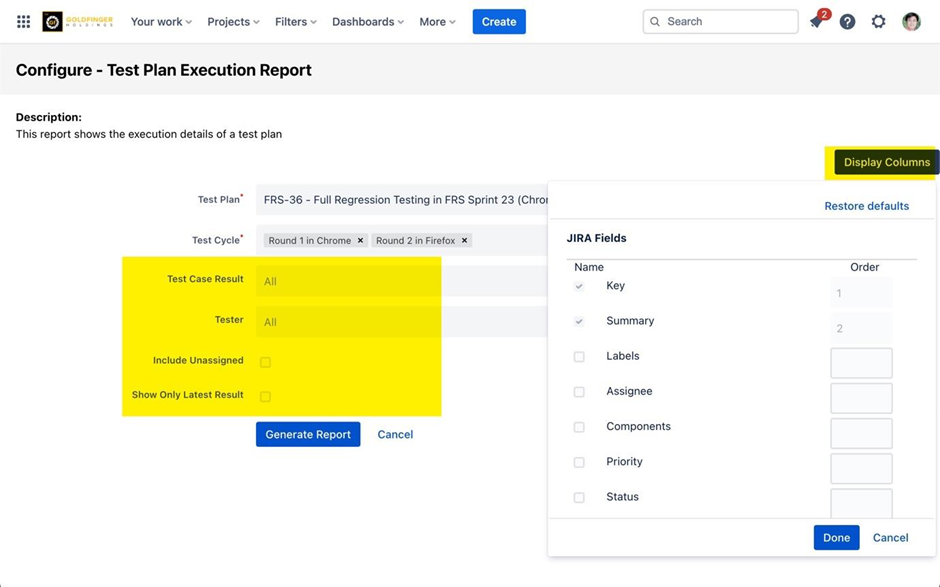

3. Perform further configurations for customizing report:

   1. Test Case Result: Only produce report with selected results

   2. Tester: Only produce report with selected testers

   3. Include Unassigned: Include unassigned test runs

   4. Show Only Latest Result: Only show the latest result from each test case

   5. Display Columns: Only show the selected fields in report

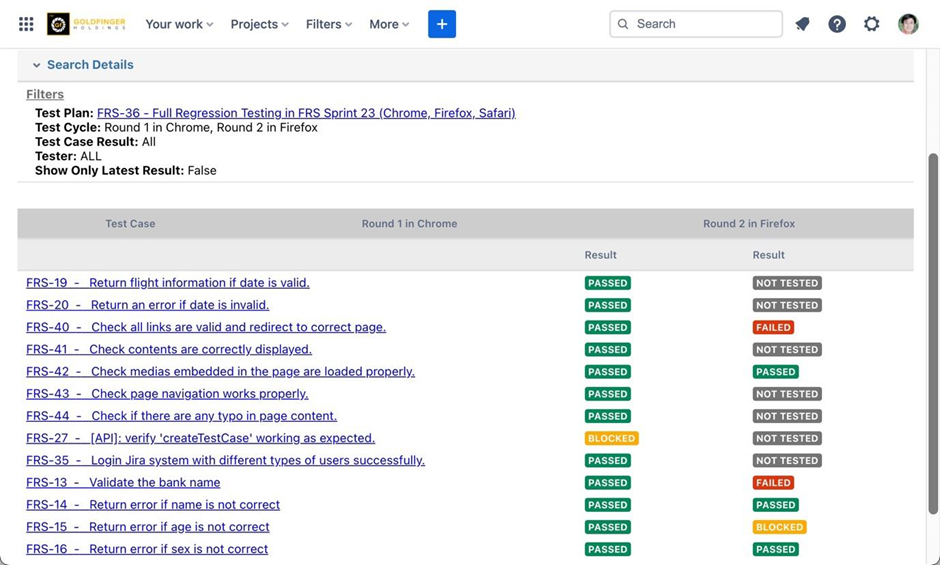

Generating Test Reports

1. Click ‘’Test Plan Execution Report’’ link. The “Configure – Test Plan Execution Report” page appears.

2. Choose a Test Plan and Test Cycle/s along with other configurations.

3. Click ‘Generate Report’. Test Plan Execution Report is generated.

Note: You can follow the same steps to generate data from other reports.

Exporting Test Report

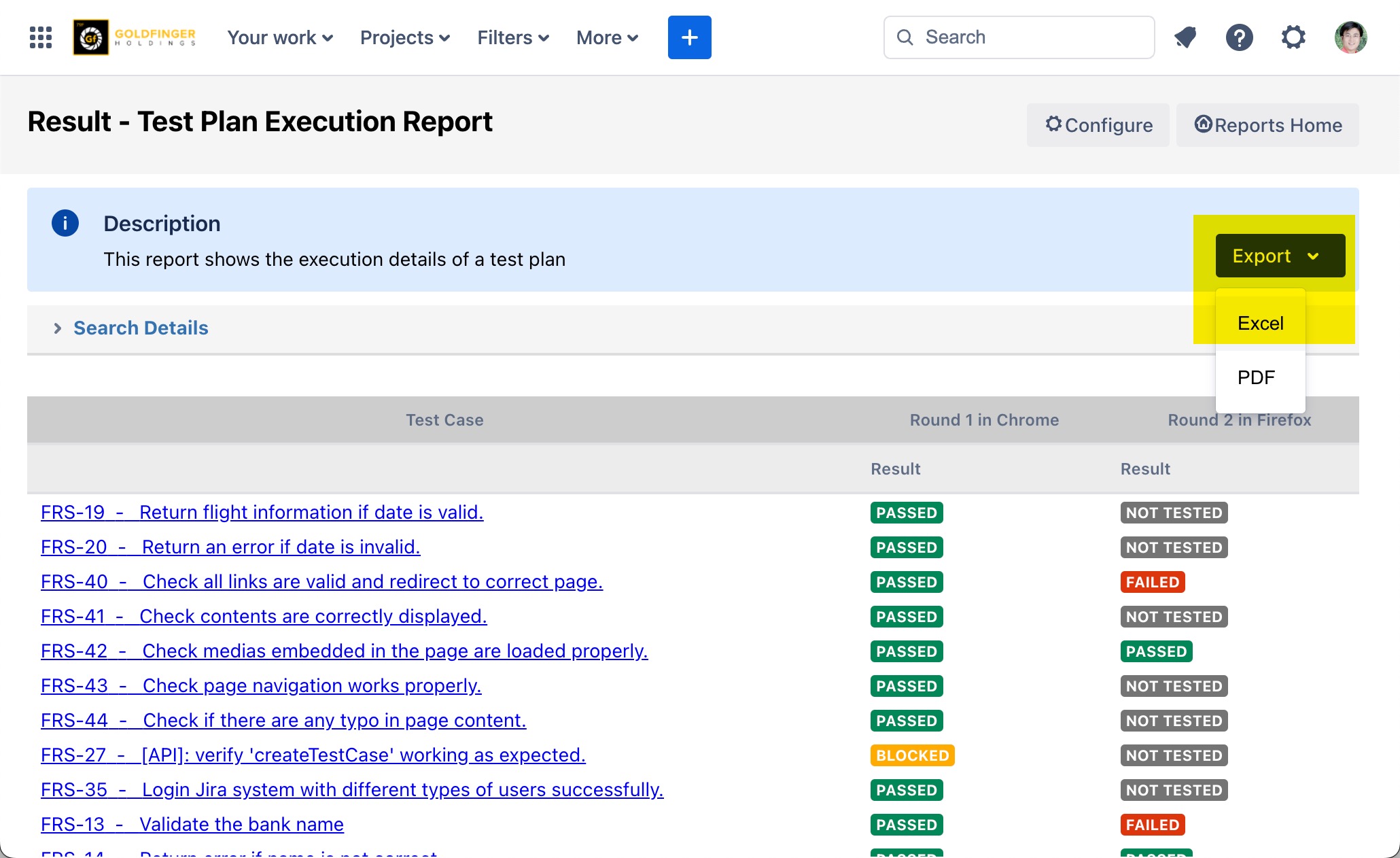

1. Once a report is generated, user can click “Export” button to export. The report can be in either .xlsx or PDF file for offline usage.

Adding TestRay Gadgets in Jira Dashboard

Note: Dashboard gadgets provide brief testing information.

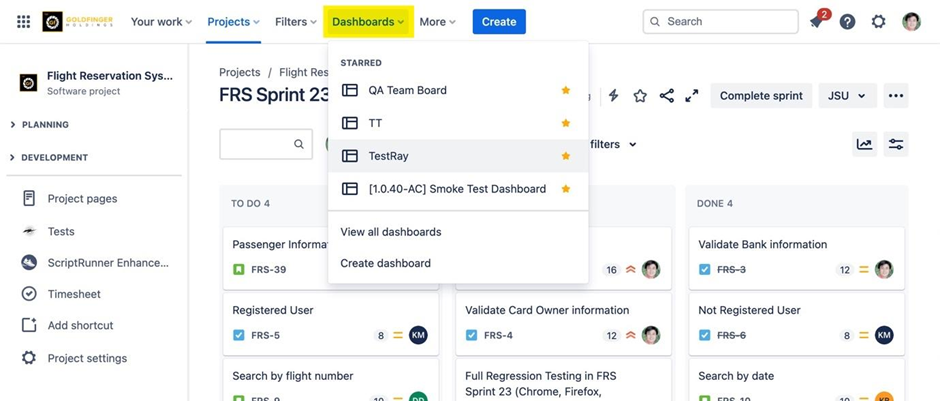

1. Click the ‘’Dashboard’’ from Jira main menu and select one of the listed dashboards.

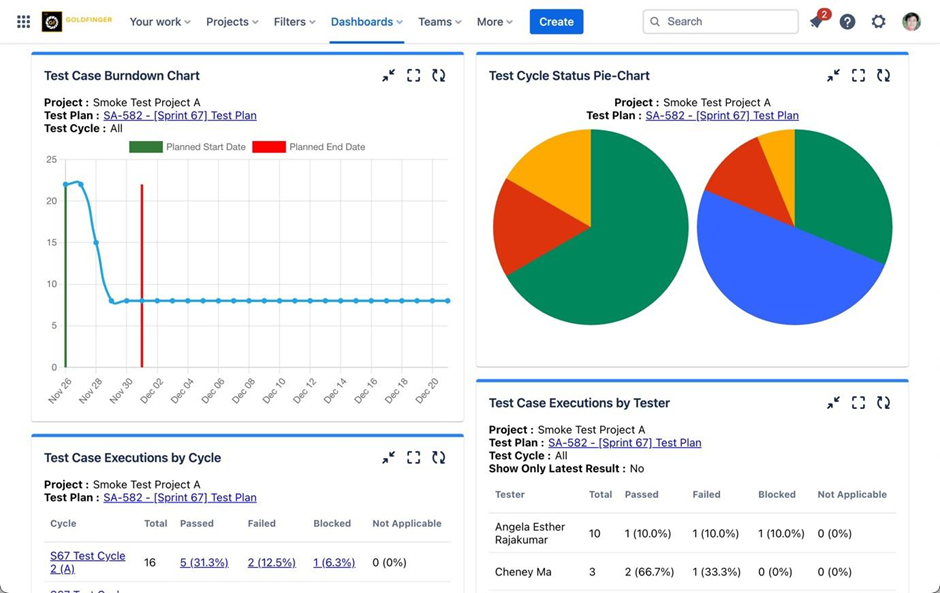

TestRay provides gadgets mentioned below for user selection:

1. Test Cycle Status Pie-Chart

2. Test Case Burndown Chart

3. Test Case Executions by Cycle

4. Test Case Executions by Tester

5. Defect Statistics per Test Cycle/s

6. Test Case Executions by Field

7. Test Executions During a Period

8. Test Run Assigned To Me
